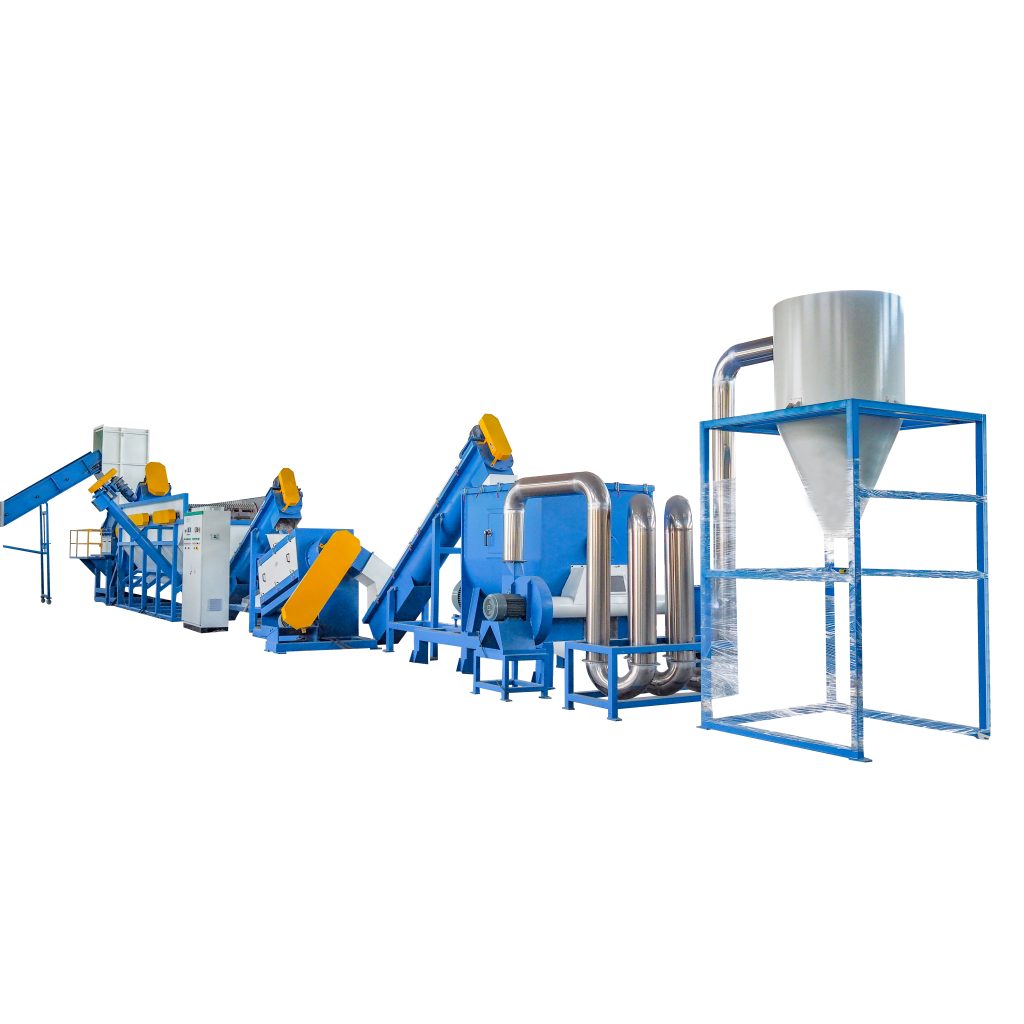

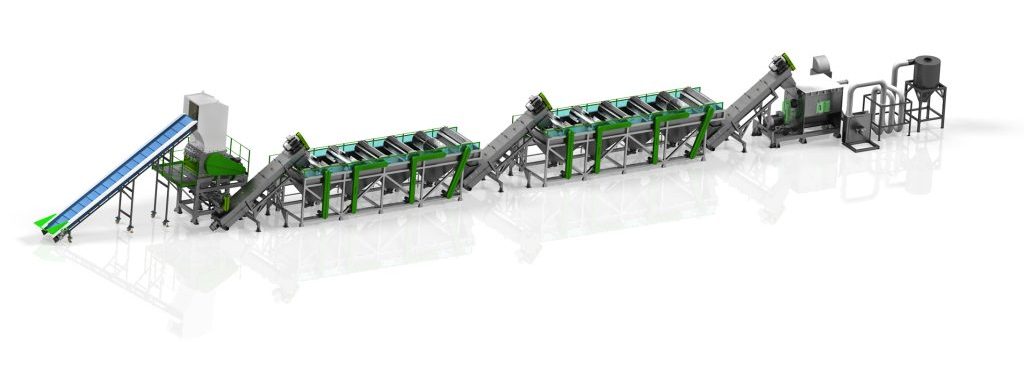

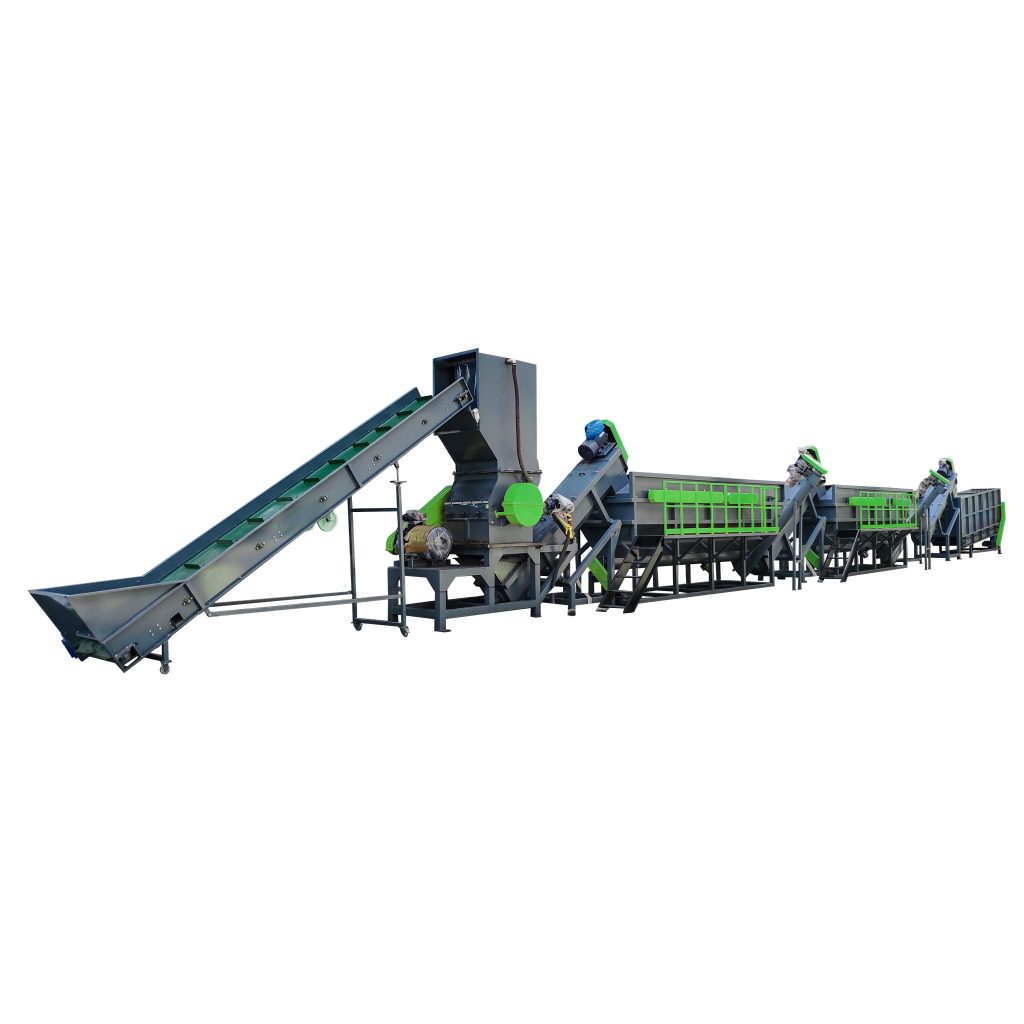

Plastic washing line for soft plastics
PE PP film recycling washing line Application material: […]
Product Specifications
- Capacity 300-1000 kg/h
- Material PP, PE, LDPE, HDPE Films
- Power 150-300 kW
- Pellet Size 2-5 mm
- Warranty 1 Year
Product Description
PE PP film recycling washing line
Application material:
This plastic film crushing, washing ,drying recycling line is mainly used for post-consumer soft plastic materials such as HDPE, LDPE, LLDPE film, bags, PP woven bags, raffia, big bags, film., Agricultural film (greenhouse film, mulching film, banana film), PP non-woven.
Before

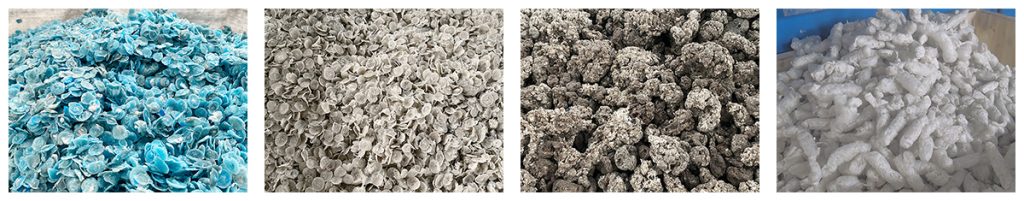

After
Introduction:
Video:
Key Equipment & Function:
| Conveyor
Transports material to shredder/crusher. High side wall suitable for varies materials.
|
 |
|
|
Shredder
Pre-shreds material. Single shaft/Two-rotor shredder Heavy duty type for pre-shredding Siemens PLC control
|

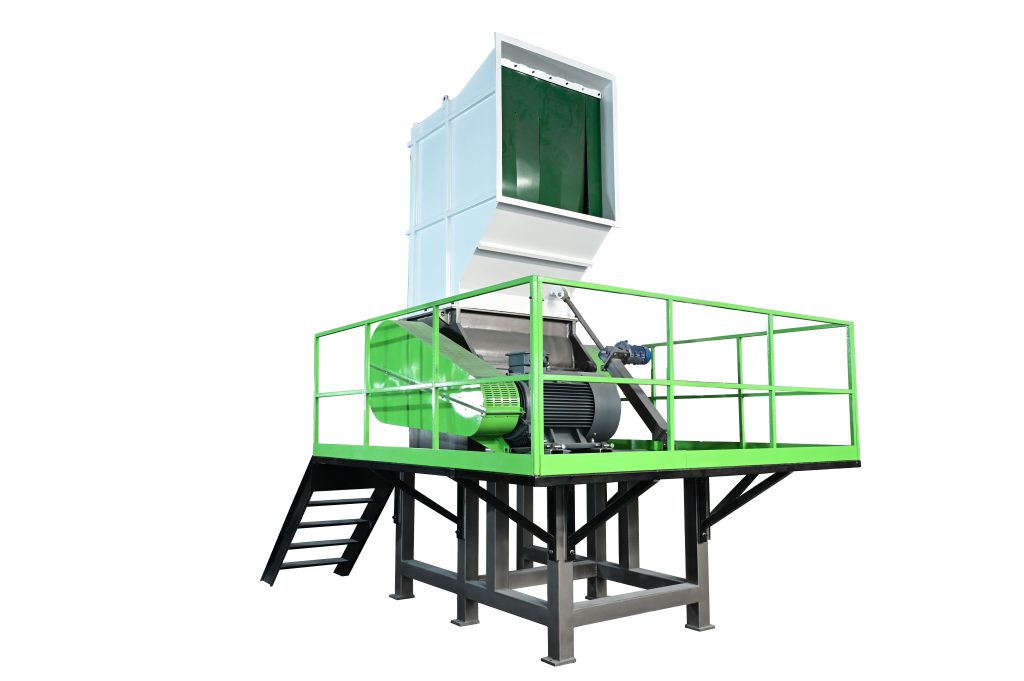

| Wet crusher
Wet crushing in order to pre-washing material and avoid problem of flying dust and smoke. Turn large materials into small pieces in this module, which improves the washing result and makes the final product easy for packing. V rotor and blades design,easy operation.
|
 |
|

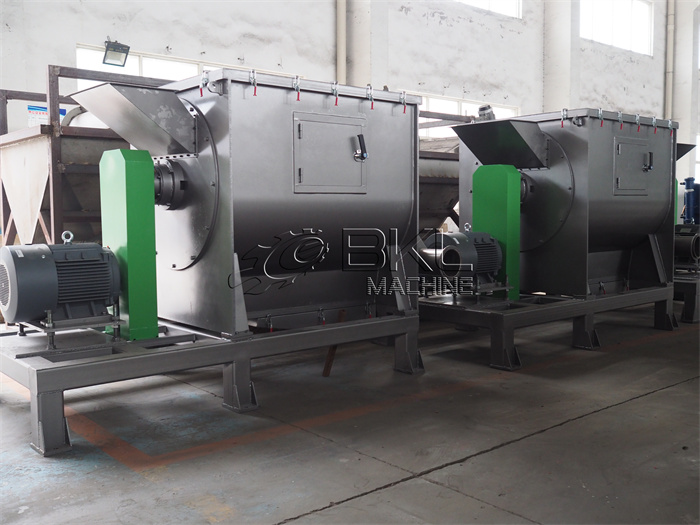

Friction washer
Particular removal of sediment mud, sand from agricultural film by friction and mass water flushing. Removes sand, dirt, and adhesives through high-speed rubbing. |

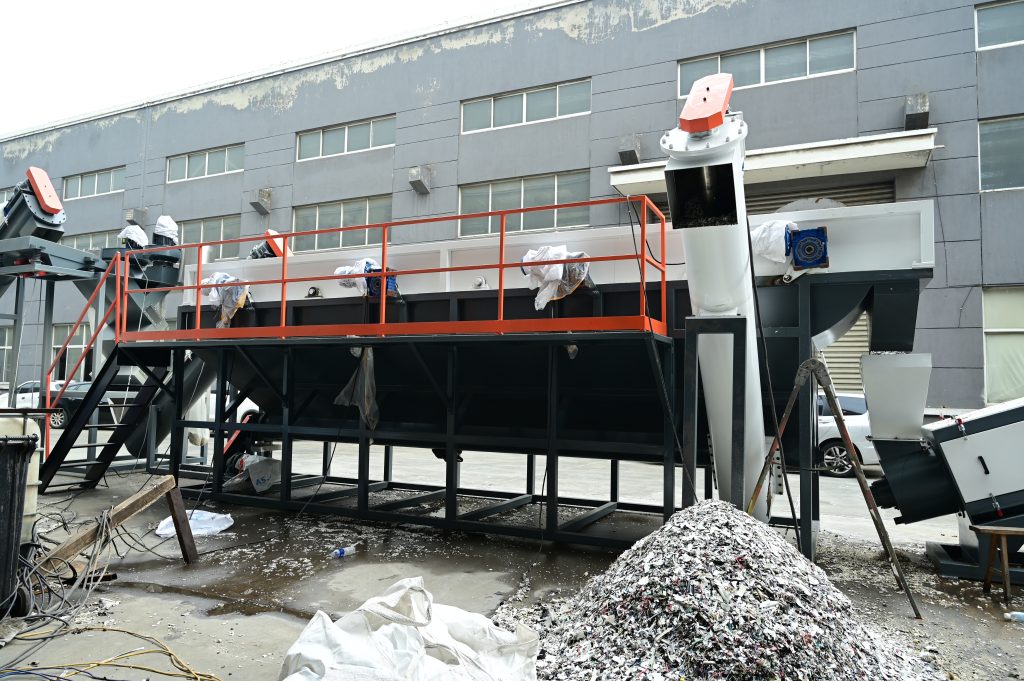

| Sink-float washing tank
Separates PE/PP (floats) from heavier impurities (sinks). |
 |

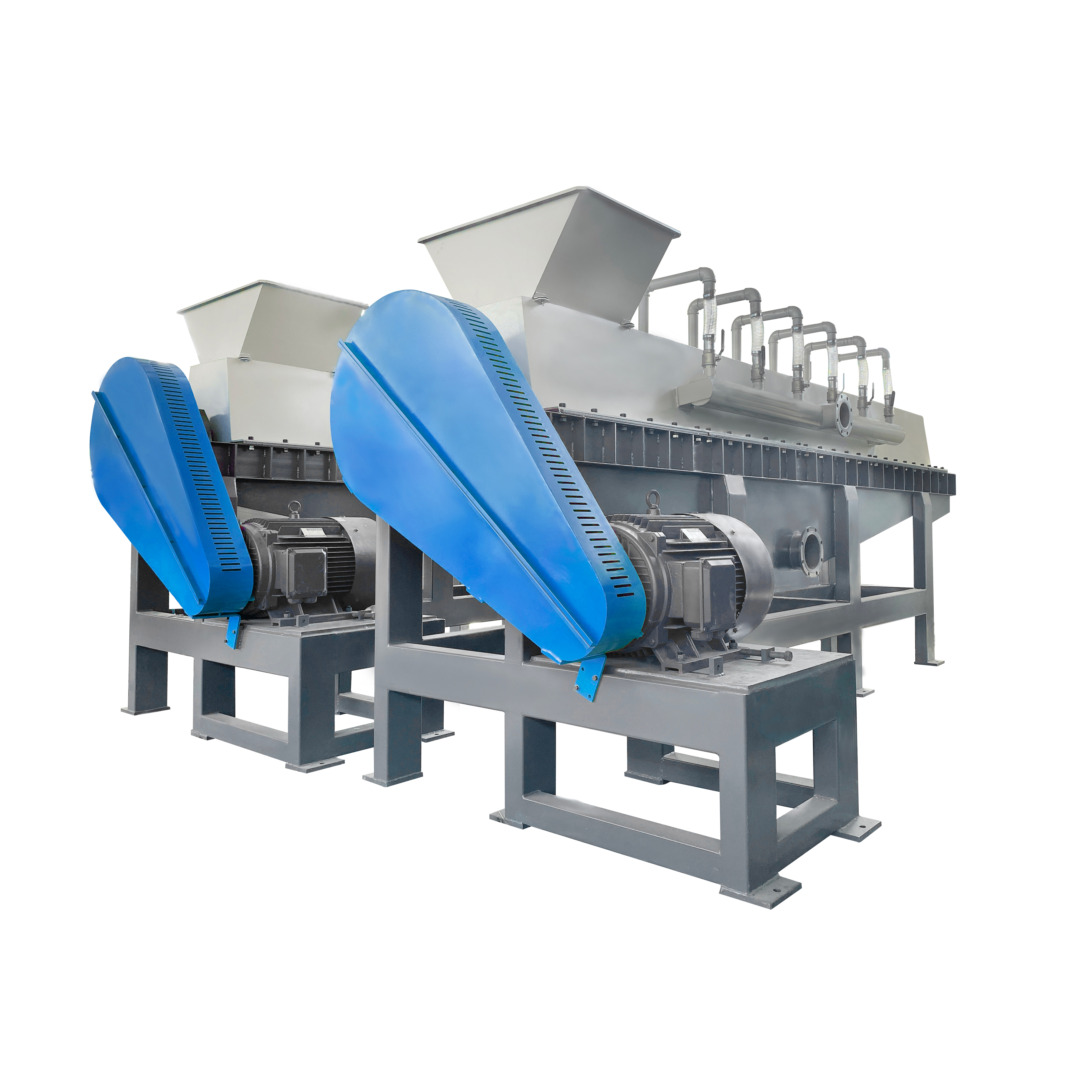

| High speed friction washer
High speed and efficiency washing equipment Speed:1200rpm Dynamic balance treatment |
|

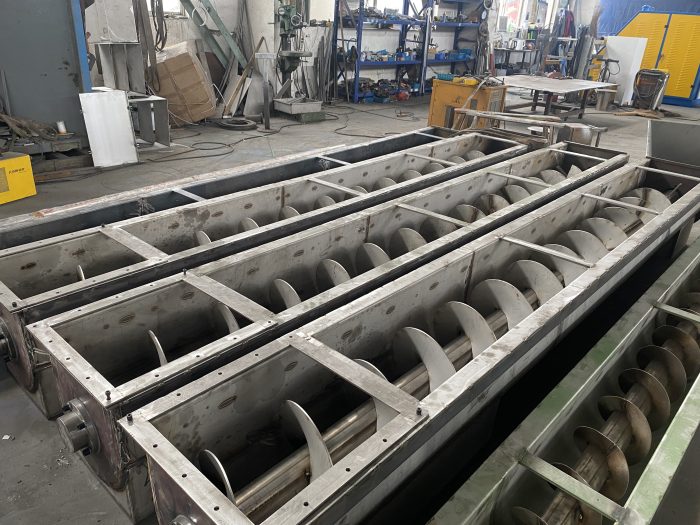

| Screw loader
For transport material with water to downstream. Parts contact with water are all made of Stainless steel. |
 |
 |

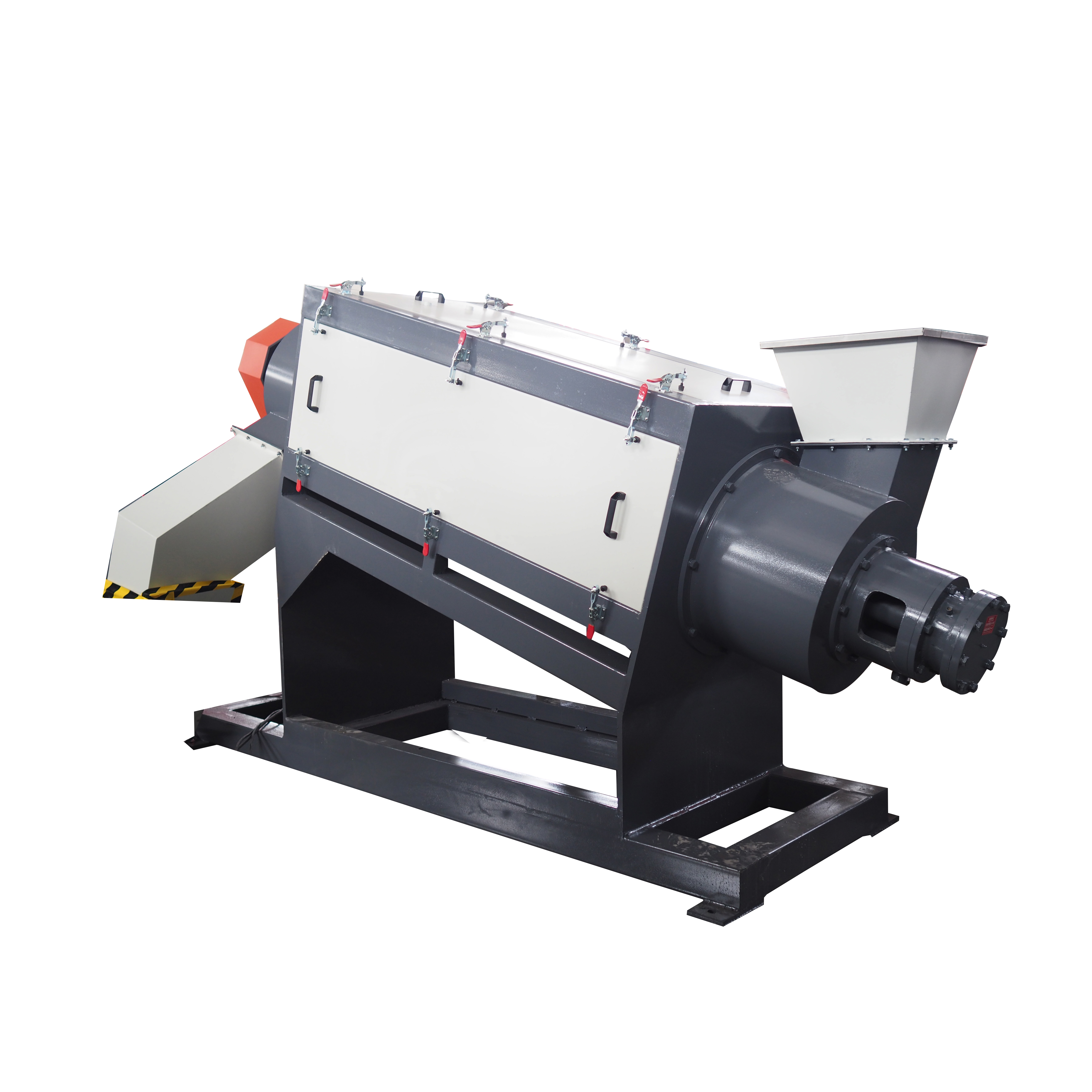

Dewatering machine
Centrifugal dryer Rotor with dynamic balance treatment. Screen shape:octagonal shape Each vane top side equipped with a Stainless steel block which is replaceable after wearing. Speed:1440rpm |

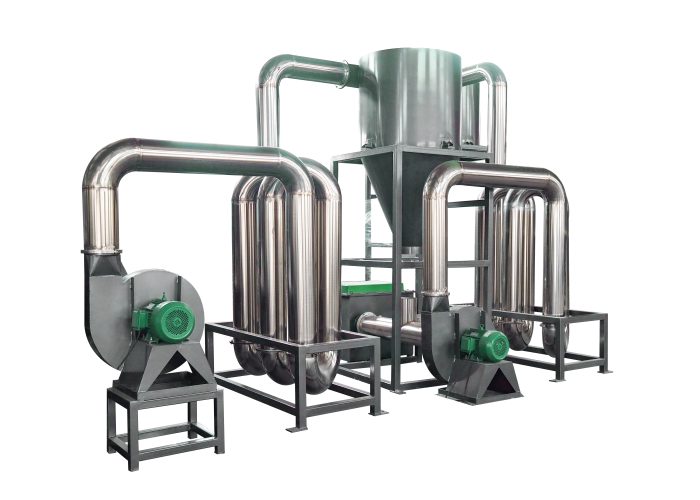

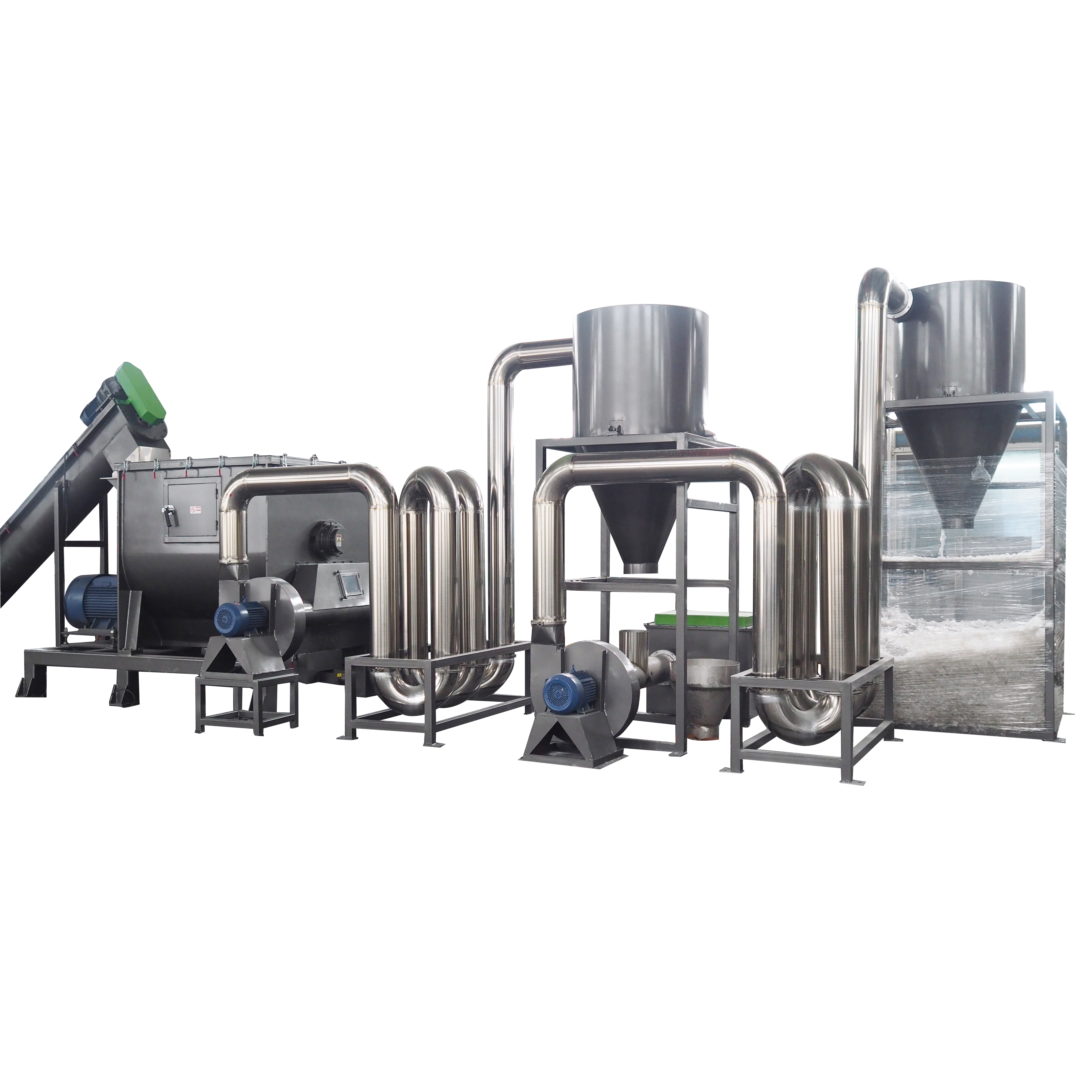

| Pipe drying system
Reduces moisture. 1500rpm. Electrical heater. Better efficiency for thick film/bags. |
 |
 |
Silo
Material Stainless steel. Size customized. |
| Option | |
 |

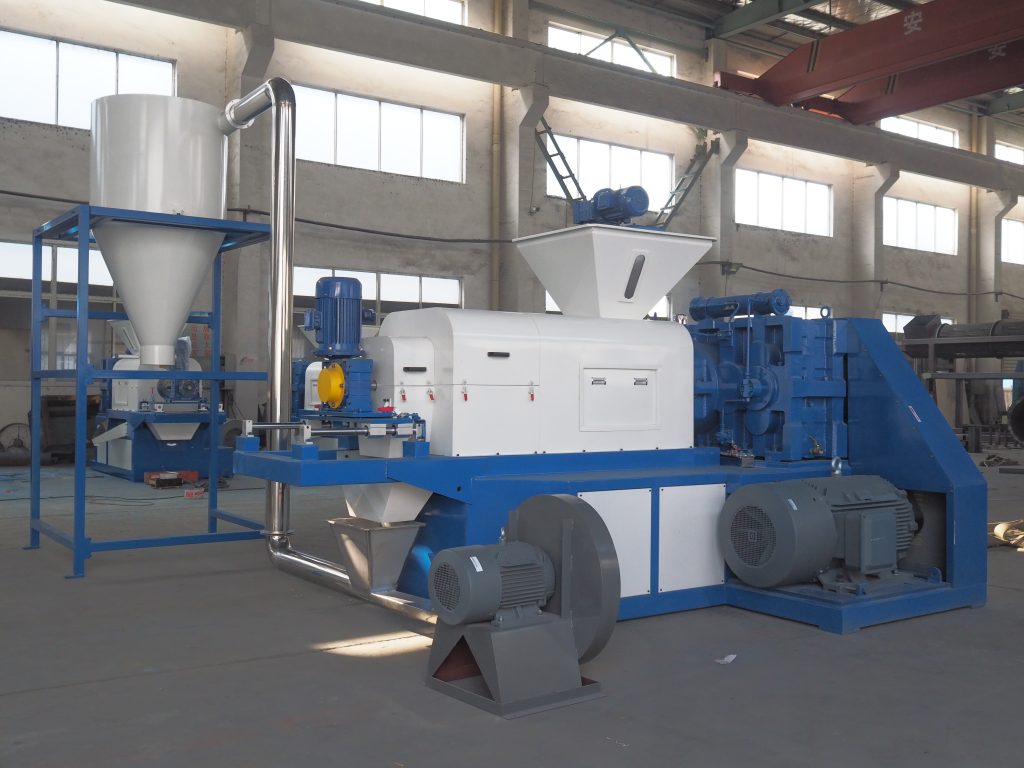

Squeezer dryer
Removes moisture to 3-5% and compacts materials through mechanical friction and electric heating. |
Models & specification:
| Capacity (kg/h) | Installation power (kw) | Floor area (m2) | Manpower | Water consumption (m3/h) | Final product |
| 200-300 | 110-160 | 350 | 2-3 | 4-5 | A. Soft Film / raffia flakes 60-100mm.
B. Semi-molten slices/wine bottle stoppers. |
| 400-600 | 160-230 | 400 | 3-4 | 8-10 | |
| 800-1000 | 280-500 | 750 | 4-6 | 15-20 | |
| 1500 | 380-600 | 1000 | 6-8 | 20-30 |
Send Us a Message
Related Products

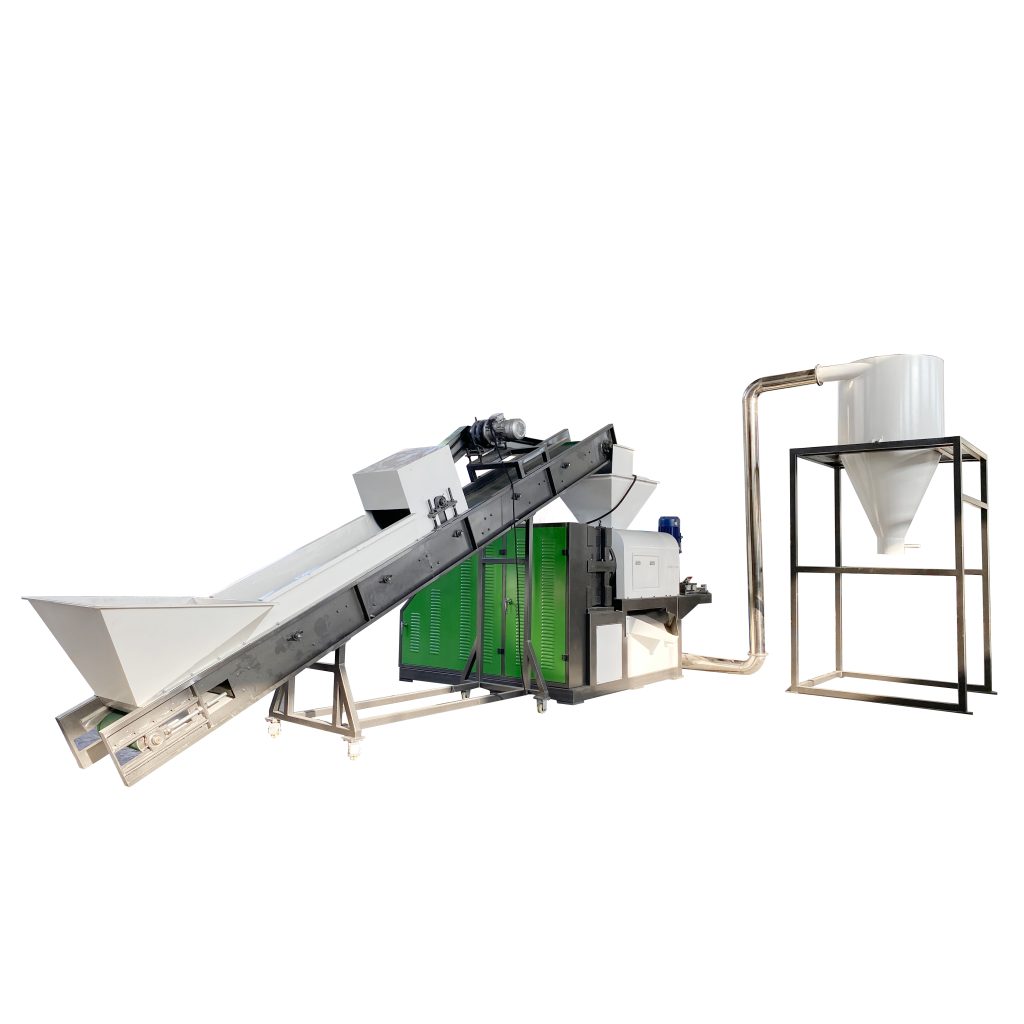

JG Plastic Squeezer (Densifier Squeezing & Plasticizing Machine)
