High-speed friction washer
High-speed Friction Washer This friction washer is inst […]
Product Specifications
- Capacity 300-1000 kg/h
- Material PP, PE, LDPE, HDPE Films
- Power 150-300 kW
- Pellet Size 2-5 mm
- Warranty 1 Year
Product Description
High-speed Friction Washer

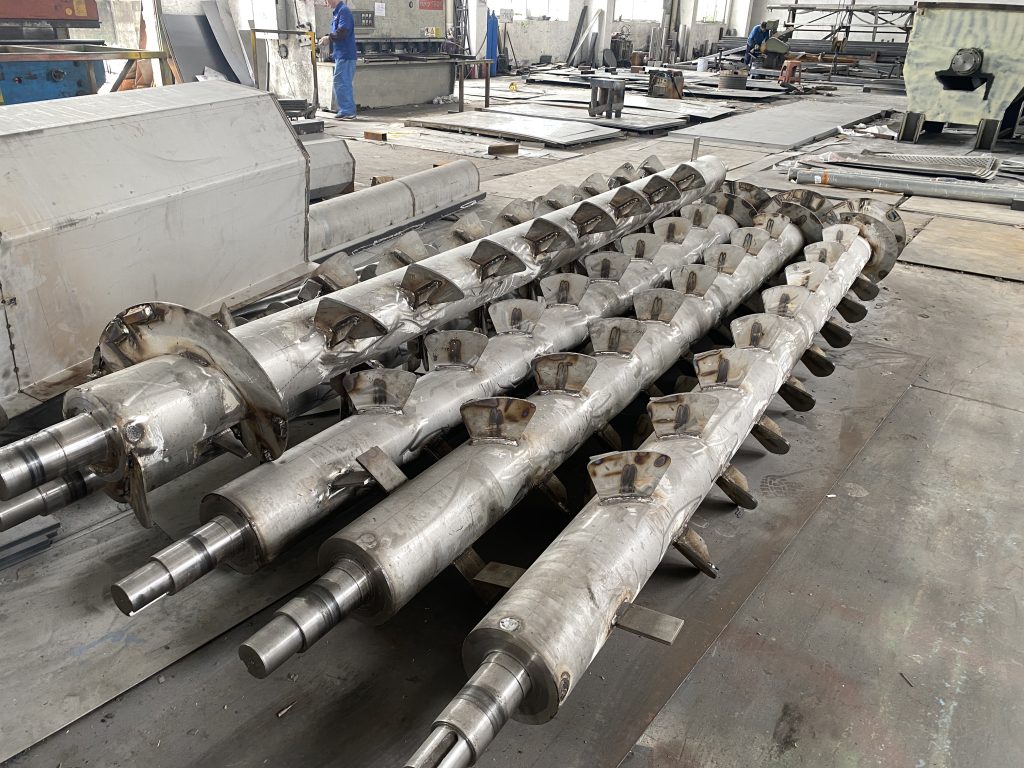

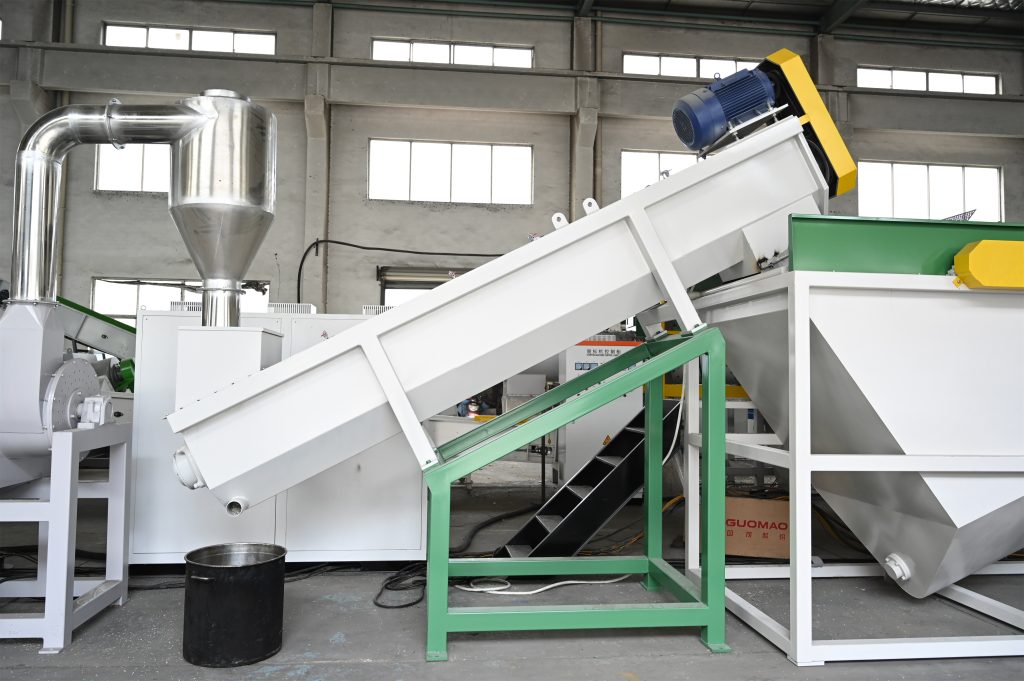

This friction washer is installed at an inclination angle of 20° to 30° relative to the ground. Equipped with a high-speed (720-1200 rpm) rotating shaft and paddles, the machine generates strong friction against plastic materials for intensive cleaning. Continuous water spray is supplied from the top to flush away dirt and contaminants, while conveying clean materials to the subsequent processing stage. The bearing housings feature superior sealing performance and stay completely isolated from water to extend service life.

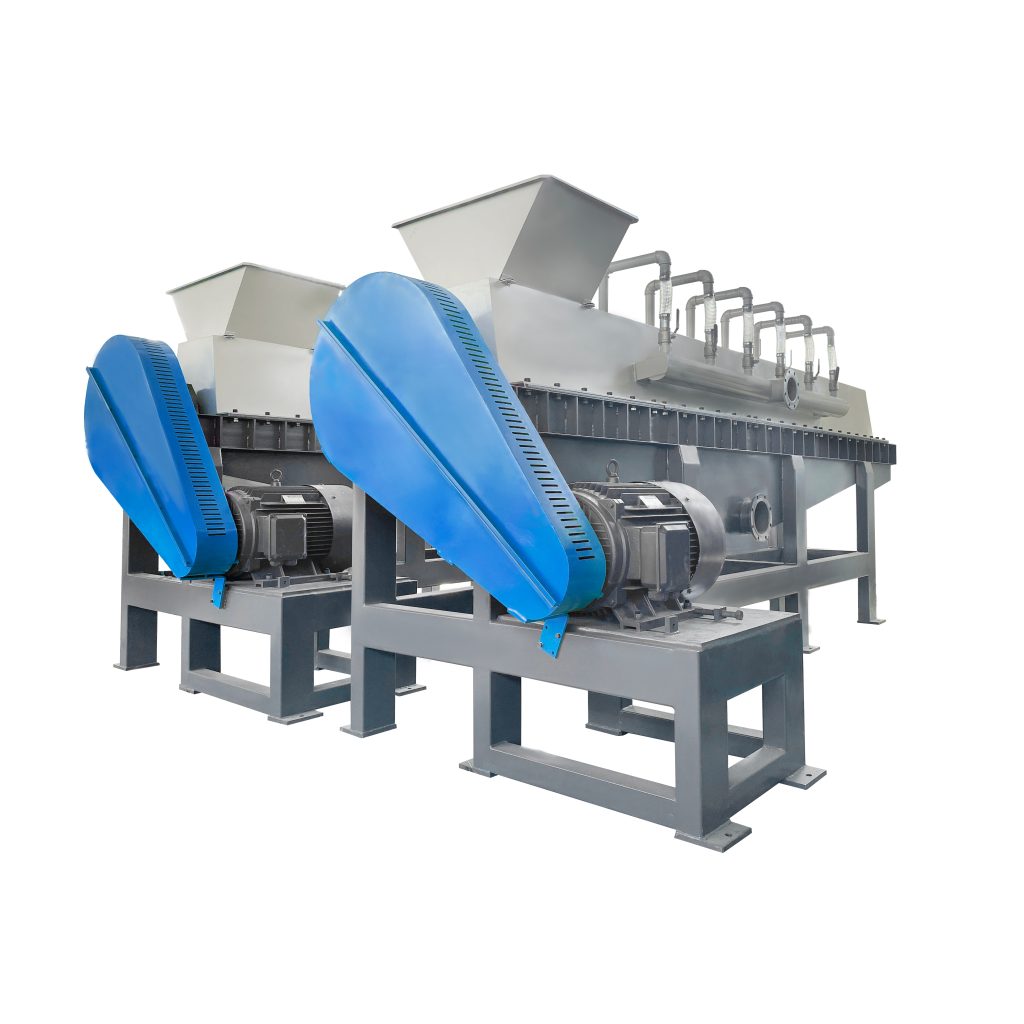

We also supply heavy-duty horizontal friction washers, specially designed to rub off paper labels attached to plastic surfaces, delivering outstanding cleaning efficiency.
Video:
https://www.youtube.com/watch?v=4uo7LcKaFRk
Models & Specification:
| Model | Motor power | Rotor diameter | Rotating speed |
| HSW350 | 15/22kw | 350mm | 720-1200rpm |
| HSW450 | 30/37kw | 450mm | 720-1200rpm |
| HSW650 | 45/55kw | 650mm | 720-1200rpm |
