Dewatering centrifugal dryer (Spinner)
Dewatering centrifugal dryer (Spinner) also called deh […]
Product Specifications
- Capacity 300-1000 kg/h
- Material PP, PE, LDPE, HDPE Films
- Power 150-300 kW
- Pellet Size 2-5 mm
- Warranty 1 Year
Product Description

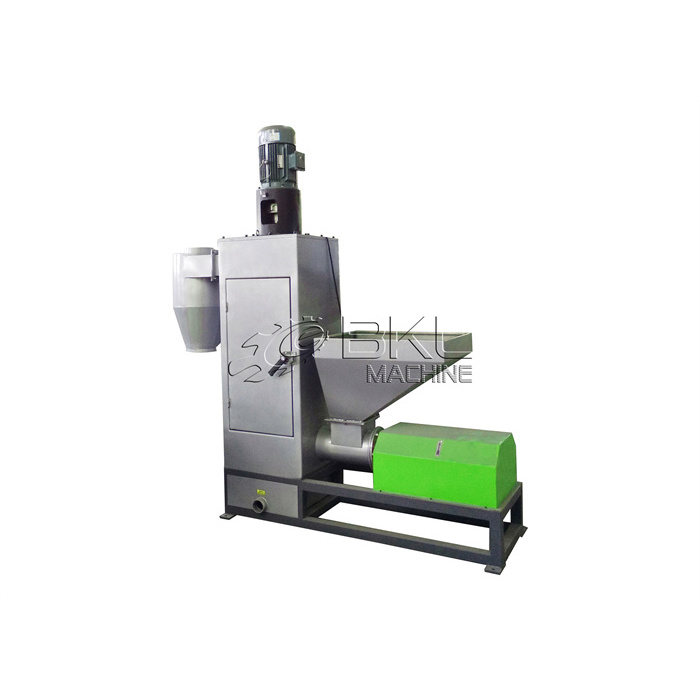

Dewatering centrifugal dryer (Spinner)
also called dehydrator, mechanical dryer, spinner, centrifuge machine.For post-wash plastic drying in modern recycling facilities. Effective on shredded film, rigid regrind, and mixed plastic streams.

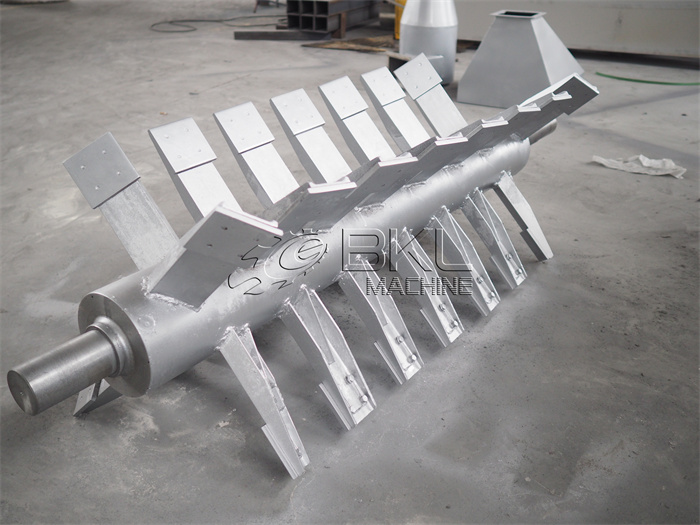

By utilizing a high-speed, open-flow rotor design, these units achieve a residual moisture content of <1–8%, with throughput reaching 2,000 kg/h. The modular screen basket and easy-access hatch simplify cleaning and maintenance, while the corrosion-resistant construction ensures long service life in demanding wet environments. This efficient centrifugal dewatering dryer obtains maximum moisture reduction from a plastic flake stream, together with electrical heating box it can reach high drying efficiency.
-
Stable 1500 RPM operation for thorough and fast dewatering.
-
Ideal for both soft and rigid plastics (film, raffia, regrinds)
-
Effectively removes surface moisture, ensuring clean and dry plastic feedstock.
- Widely applicable to PP, PET, HDPE, LDPE, LLDPE, ABS…
-
Robust structure and wear-resistant parts for long-term stable performance.
Video:
Models & Specification:
|
Model |
VTS-450 | WTS-650 | WTS-850 | WTS-850L |
| Main Motor | 5.5/7.5/11KW | 22/37KW | 55/75KW | 90/110KW |
| Rotary diameter | Φ450mm | Φ650mm | Φ850mm | Φ850mm |
| Capacity for rigid scraps | 300-500kg/h | 500-1000kg/h | 1500-2000kg/h | 2000kg/h |
| Capacity for soft film | 300-400kg/h | 500-600kg/h |
800-1000kg/h |
