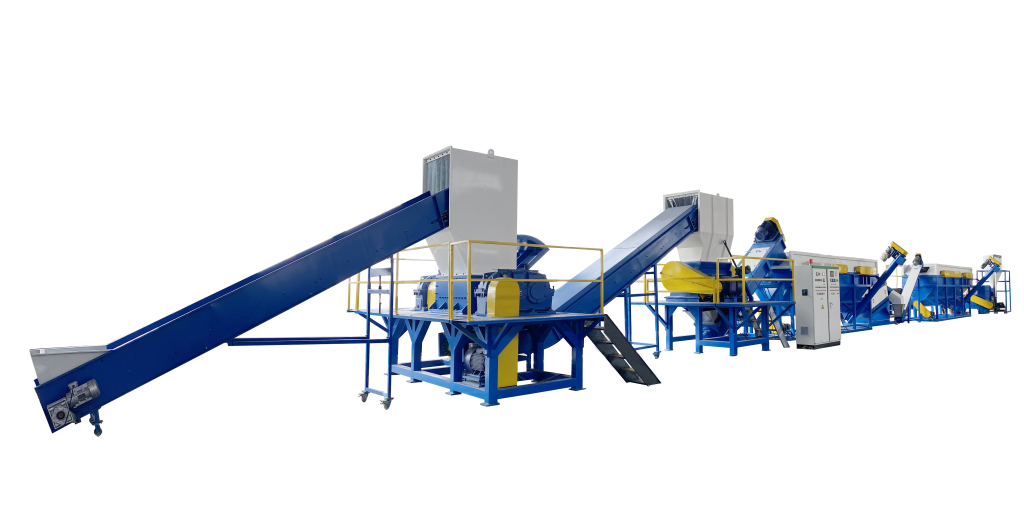

Plastic washing recycling line for rigid plastics
Plastic Washing recycling Line for rigid plastics Appli […]
Product Specifications
- Capacity 300-1000 kg/h
- Material PP, PE, LDPE, HDPE Films
- Power 150-300 kW
- Pellet Size 2-5 mm
- Warranty 1 Year
Product Description
Plastic Washing recycling Line for rigid plastics
Application material:
HDPE, PP, ABS, PS plastics are commonly used in the production of packaging materials such as bottles, barrels, containers, casings / shells of household appliances, chemical drums, Milk bottles, boxes, chairs, desks, and pipes.

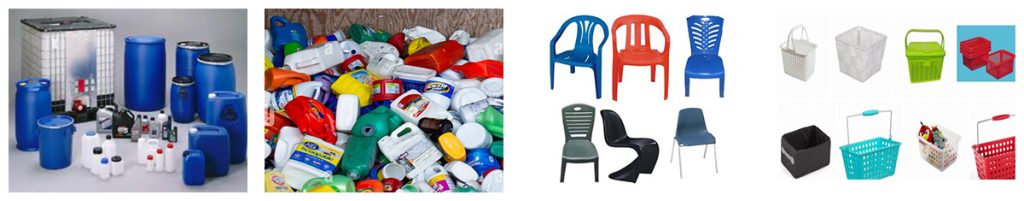

Before:

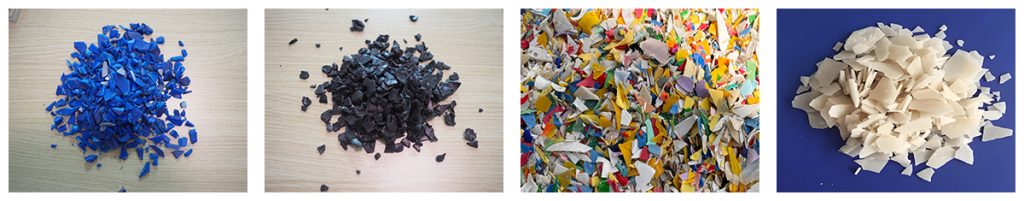

After:
Introduction:

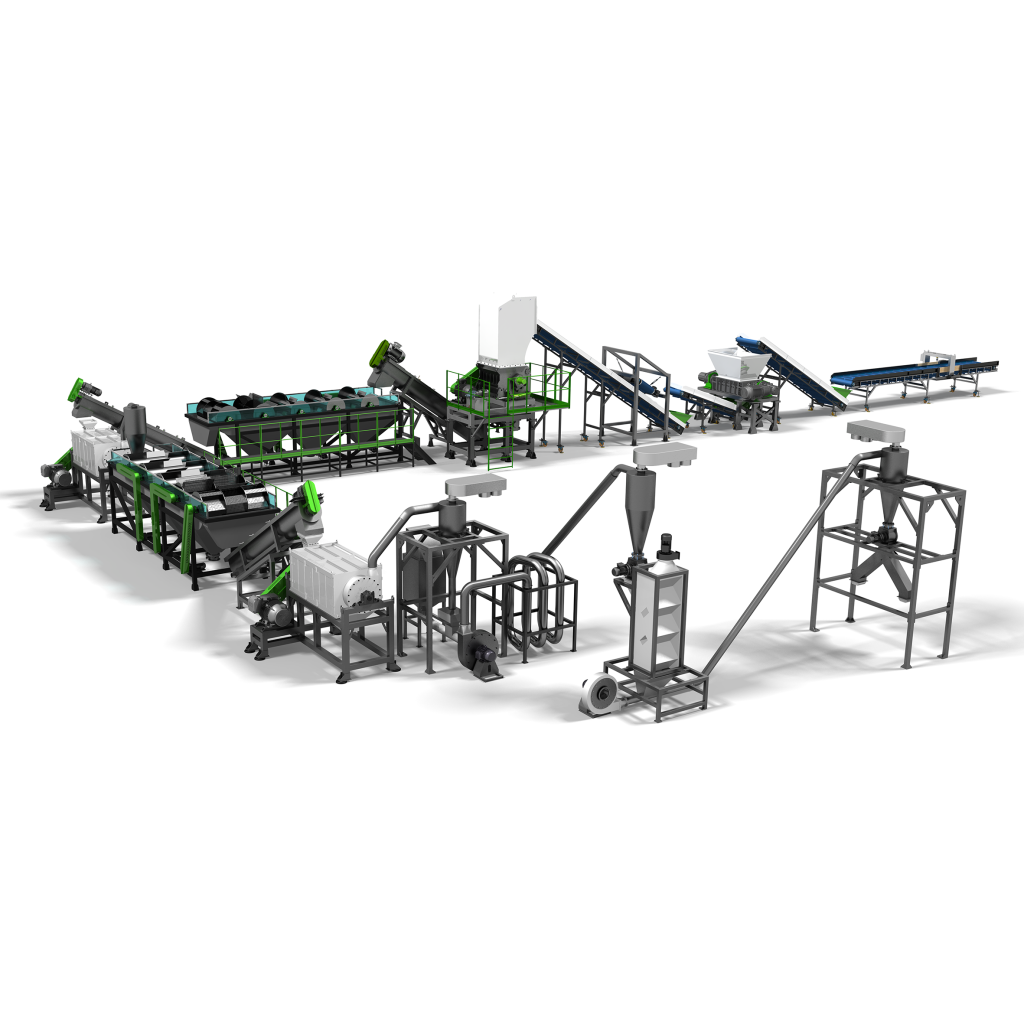

Production Line Components :

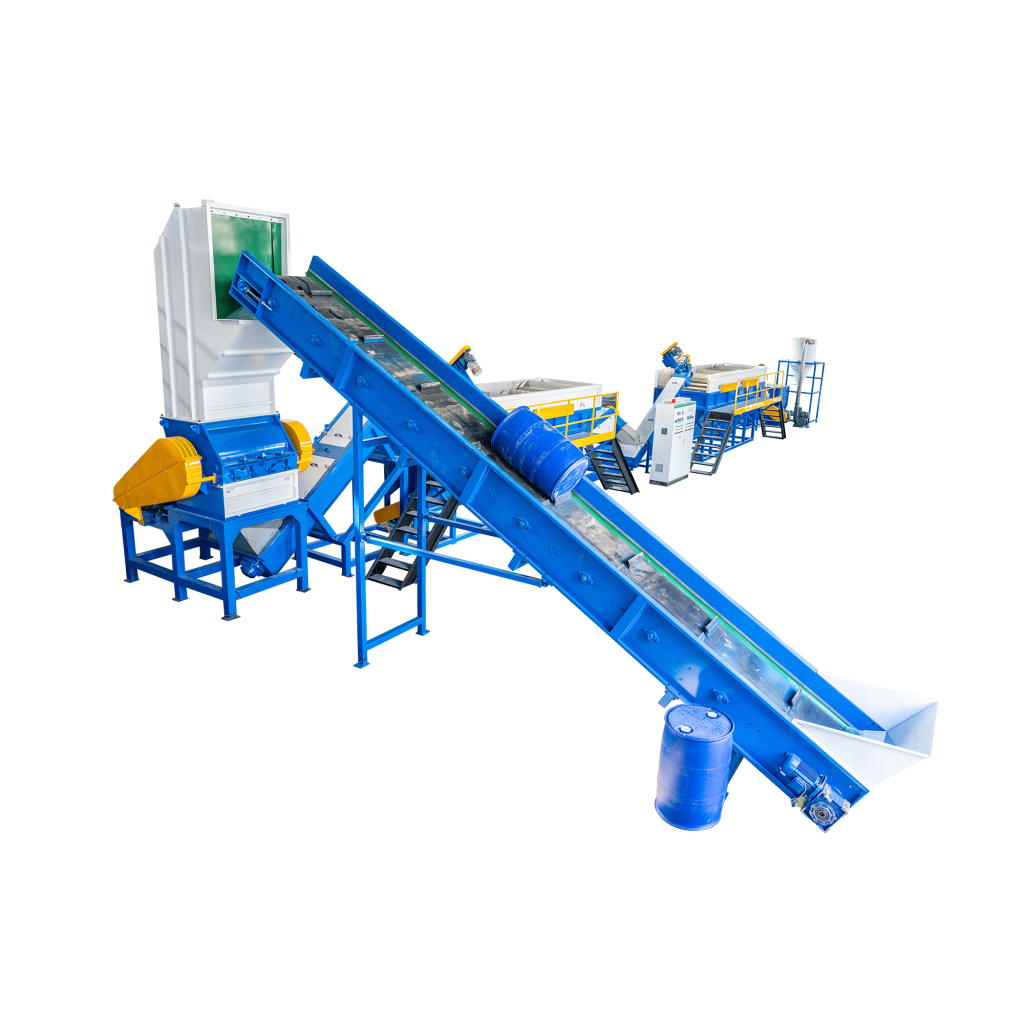

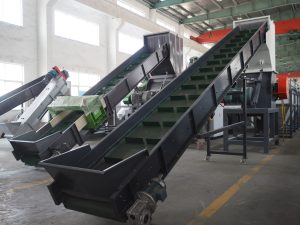

| Conveyor
For transport material to shredderGear motor adoptHigh side wall suitable for varies material
|
 |
|

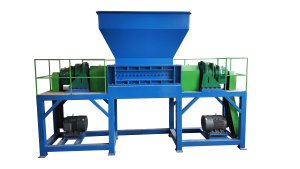

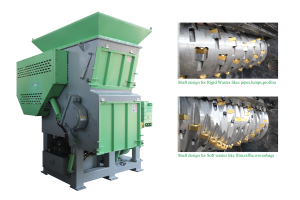

Shredder
Single-shaft / Twin-shaft shredder – Optional, pre-shreds plastics to increase throughput of the whole line, eases burden of the crusher. Siemens PLC control |
| Heavy-duty wet crusher
Breaks plastics/shredded chunks into smaller particles of 8-16mm. Wet crushing in order to pre-washing material and avoid problem of flying dust and smoke. Turn large materials into small pieces in this module, which improves the washing result and makes the final product easy for packing. V rotor and blades design,easy operation. |
|
 |

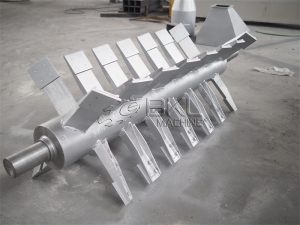

Friction washer
Deep cleaning of flakes. Material internal: stainless steel. Thick wear resistance blades and rotor design High speed design: 700-1000rpm. Dynamic balance treatment on rotor. |

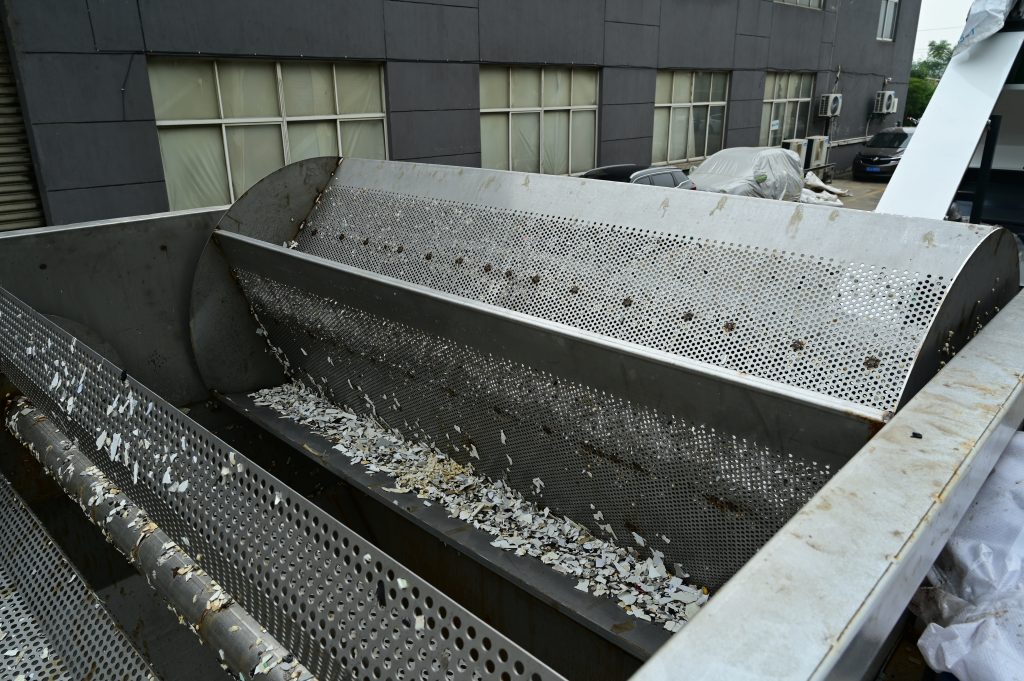

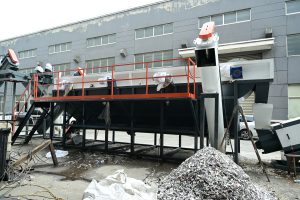

| Sink float washing tank
For washing and separation of plastic material with varies density. Separates HDPE/PP (floats) from sand/metals (sinks). Material: stainless steel Thumb wheel with frequency inverter control. |
  |
 |
High speed friction washer
Deep cleaning of flakes. High speed and efficiency washing equipment Speed:1200rpm Dynamic balance treatment
|

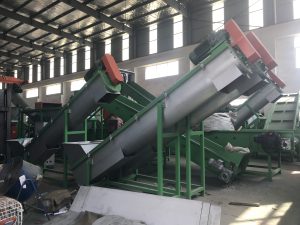

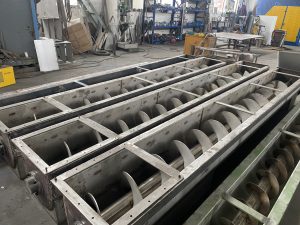

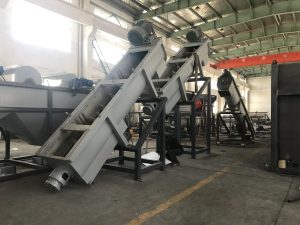

| Screw loader
For transport material with water to downstream. Parts contact with water are all made of Stainless steel.
|
  |
  |

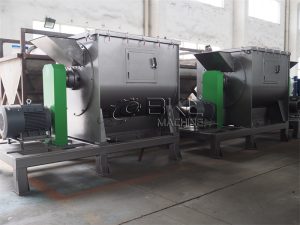

Dewatering machine
Centrifugal dryer Reduces moisture efficiently. Rotor with dynamic balance treatment. Screen shape:octagonal shape Each vane top side equipped with a Stainless steel block which is replaceable after wearing. Speed:1440rpm
|

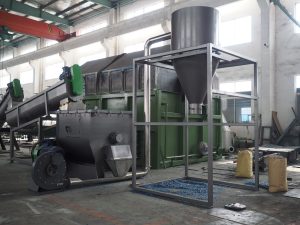

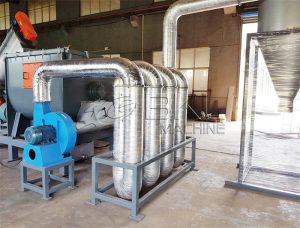

| Pipe drying system
Stainless steel pipe lines Hot air drying device Strong blower |
|
 |
Silo
Material Stainless steel. Size customized. |
Models & specification:
Capacity (kg/h) |
Installation power (kw) |
Floor area (m2) |
Manpower |
Water consumption (m3/h) |
Final product |
200-300 |
100 |
300 |
2-3 |
4-5 |
Moisture<1%Flakes size:8-16mm |
400-500 |
115 |
400 |
2-3 |
4-5 |
|
800-1000 |
125 |
500 |
3-5 |
6-8 |
|
1300-1500 |
180 |
600 |
3-5 |
8-10 |
|
1800-2000 |
250 |
800 |
3-5 |
10-15 |
