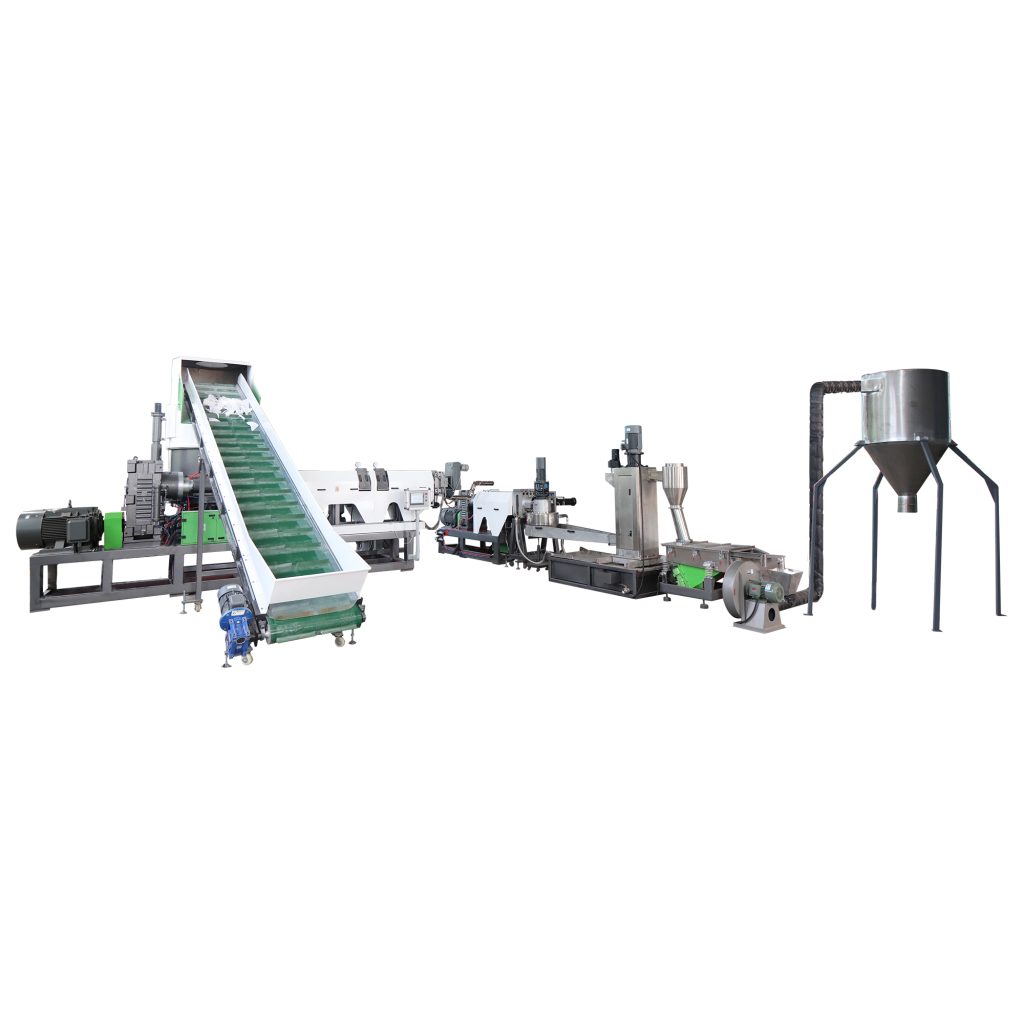

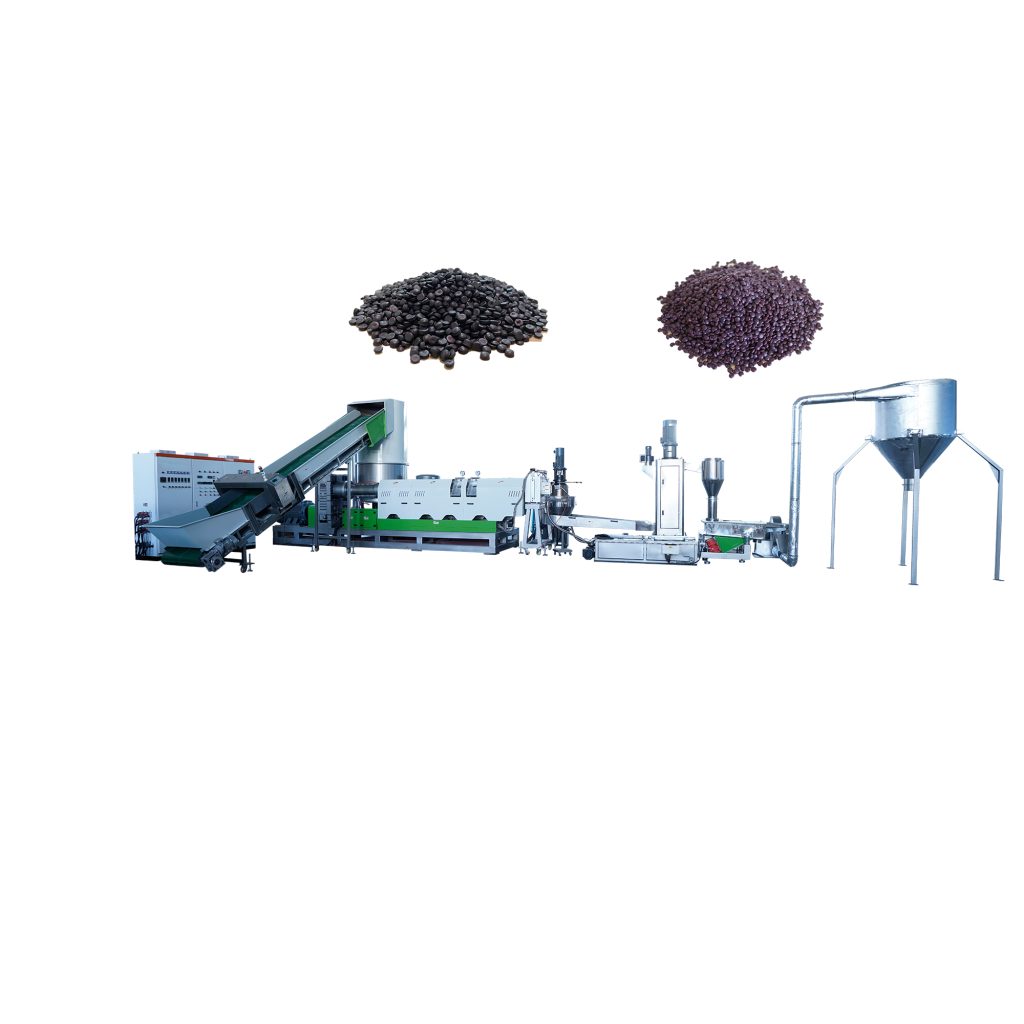

Plastic Pelletizing Machine (Granulator) with Compactor

This 3-in-1 pelletizing system combines material pre-conditioning and energy-efficient extrusion, making it particularly suitable for high-volume film recycling operations. The integrated compactor significantly improves material flow characteristics while reducing thermal degradation risks common in conventional film recycling processes.

Main Structure & Components

• Compactor (Agglomerator)

Primary Function:

Receives loose plastic films/flakes and densifies material before extrusion.

Generates frictional heat to pre-plasticize materials.

Integrated Compactor, eliminates need for separate agglomeration step.

Key Components

Rotating Cutting Disc: Equipped with moving blades.

Stationary Blades: Fixed on chamber wall for counter-cutting action.

Heating System: Friction heating.

Temperature Sensors: Monitor and control pre-heating process.

• Extrusion System

Screw and barrel:

Single-screw configuration.

Vacuum degassing zones.

Better Melt Homogeneity due to pre-conditioning.

Multiple heating zones with PID control.

• Screen Changer/filter

Filters contaminants (40-120 mesh common)

Laser filter, plate-type, piston type available.

• Pelletizing System

Die Head:

Multi-hole die design (2-8mm hole diameter).

• Cutting Mechanism:

Rotary knives for water-ring pelletizing.

Strand pelletizer with air-cooled system.

• Control System

HIM with PLC, or button type.

Controls temperature profiles.

Monitors motor load and throughput.

Overload protection.

Emergency stop system.

Application in Plastic Recycling

Film-to-Pellet, Foam-to-pellet:

HDPE/LDPE/LLDPE packing/agricultural film; shopping bags; industrial film scraps (multilayer packaging film); PP woven bags (after pre-cutting by crusher or shredder); BOPP labels; CPP film; EPS EPE foam.

ML series of Plastic Pelletizing Machine with Compactor
